introduction

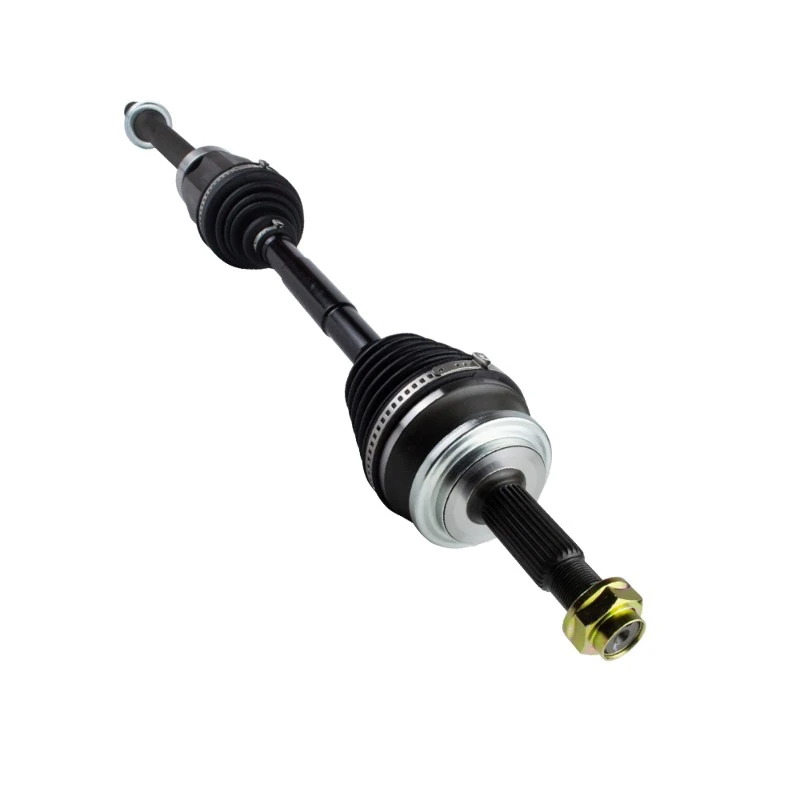

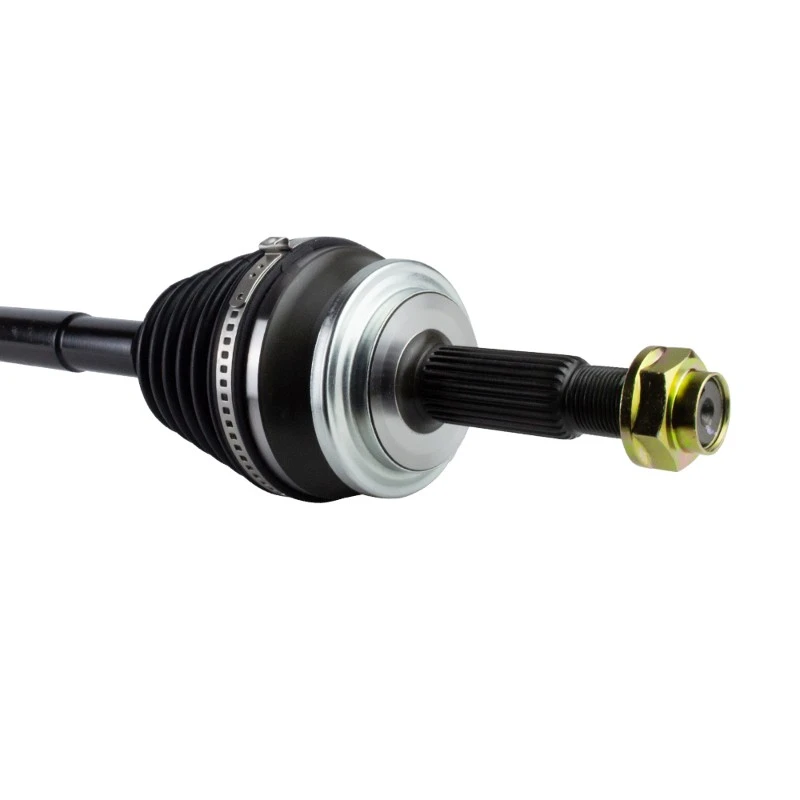

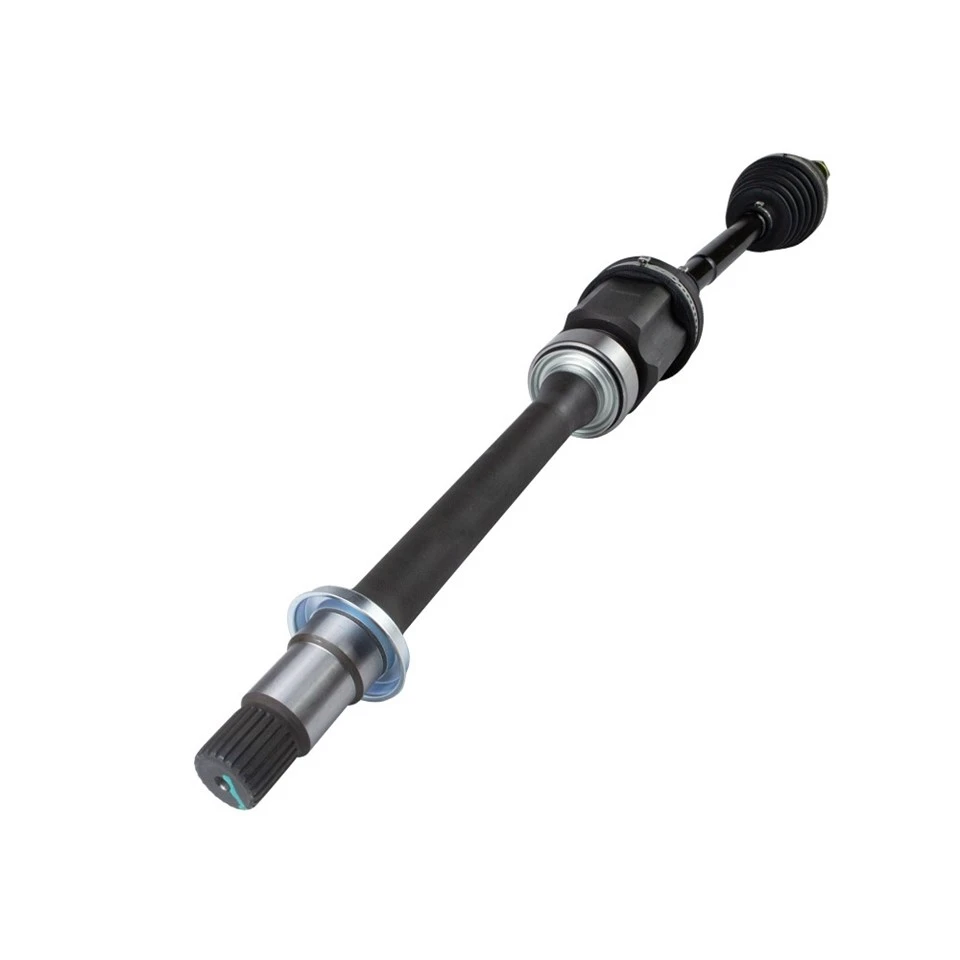

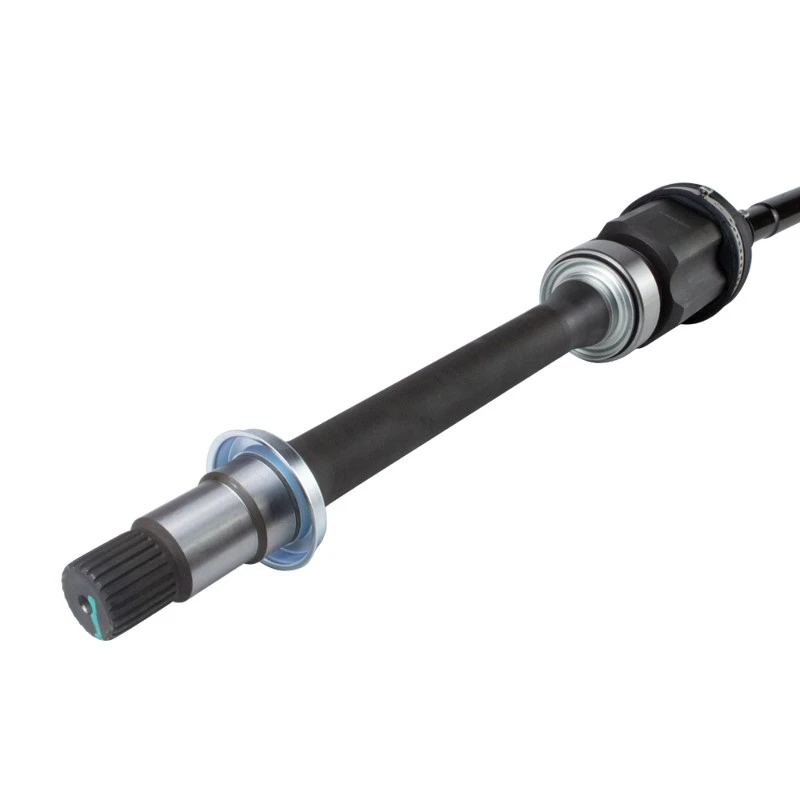

The XV70 CV Axle Drive Shaft Half Shaft Assembly for Toyota Camry (2017–2023) is a drivetrain component designed to transmit power from the transmission to the wheels. It is primarily used for replacement and maintenance in passenger vehicles, ensuring stable performance and driving comfort.
CV AXLE Product Specifications
Length: 971mm
External gear teeth (gearbox side): 26
External gear teeth (differential side): 24
CAR MODEL
XV70
Displacement:2487
OE:43410-33430
features
Fit Precision
Configured with standardized shaft lengths, precise spline counts and joint diameters, matching OEM geometry for accurate installation and balanced drivetrain performance.
Durable Construction
Manufactured from high-strength steel for enhanced torsional strength and wear resistance, combined with neoprene rubber boots that provide reliable sealing performance and resistance to corrosion and temperature variations.
Stable Transmission
The inner CV joint supports an operating angle of up to 22° that exceeds conventional T-shaped inner cage designs, enabling smooth torque transmission even at varying angles during steering and suspension movement.
Optimized NVH Performance
The short sliding distance of CV joint helps reduce internal movement and friction, effectively minimizing vibration and noise.
Complete Assembly Supply
Delivered as a full axle/shaft assembly, reducing installation time and eliminating the need for separate CV joint or boot assembly.
Quality System: Certified to ISO 9001 and IATF 16949 international automotive standards.
Warranty Policy: 12-month or 30,000 km warranty, ensuring reliable product performance and after-sales support.

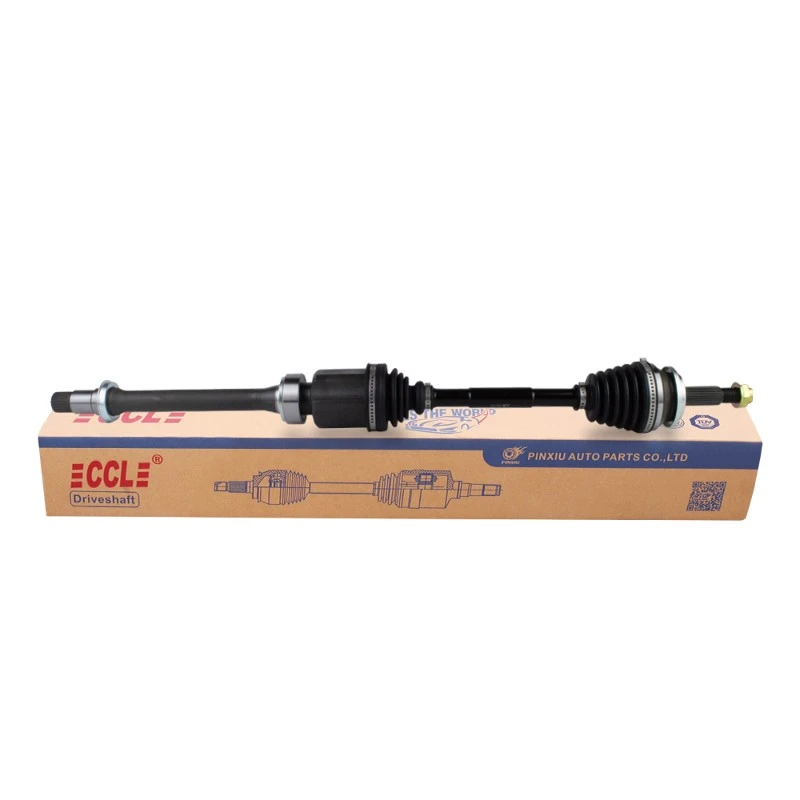

Packaging
Professional packaging is used to prevent damage during international transit.
Inner Packaging: Branded box or neutral packaging.
Outer Packaging: High-strength corrugated cartons combined with woven bags for enhanced protection.
FAQ
Q1: Is this product manufactured according to OEM standards?
A: Yes, it follows OE design principles in terms of dimensions, materials, and performance to ensure interchangeability and reliability in aftermarket applications.
Q2: Can this product be customized for bulk orders?
A: We support customization such as length, spline count, or packaging.
Q3: What quality control measures are applied?
A: Products generally undergo strict inspection processes (e.g., dimensional checks, balance testing) to ensure consistent performance and compliance with international quality standards.
Q4: What are common failure signs customers should be aware of?
A: Typical indicators include vibration during driving, clicking noise when turning, or grease leakage from damaged CV boots, signaling the need for replacement.
