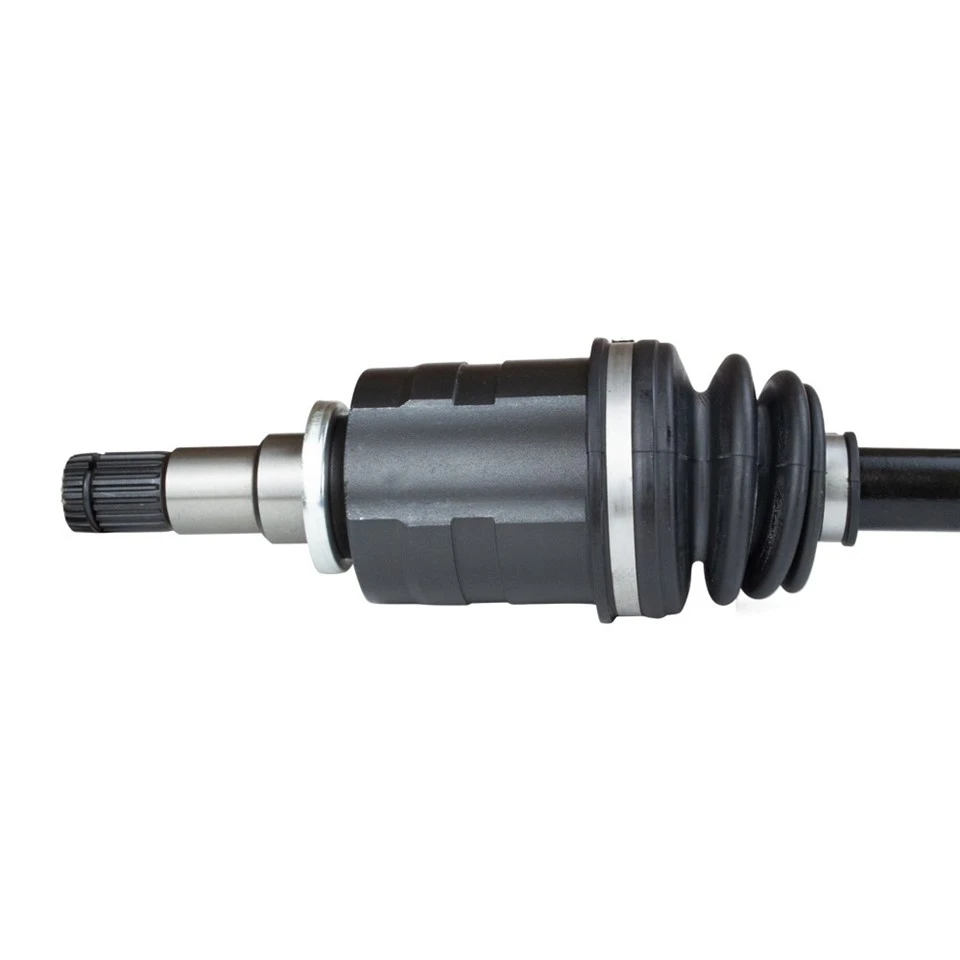

Cv Joint CV AXLE Drive Shaft For COROLLA Verso

introduction





CV Joint Axle Drive Shaft for Corolla Verso is a drivetrain component responsible for transmitting torque to the wheels. It integrates inner and outer CV joints to ensure smooth power delivery at constant velocity. It is widely used in replacement and aftermarket supply.

CV AXLE Product Specifications

Mounting Position: Front Axle Right
Length: 924mm
External Gear Side: 26
Differential Side External Gear: 20
ABS Ring Tooth Count: 48
External Thread: M22X150mm
Brake/Driving Dynamics: For vehicles with ABS
ABS Ring Diameter: 80mm

OE:43410-05340  43410-02660
Car Model:COROLLA Verso (ZER_, ZZE12_, R1_) 1.6 (ZNR10_, ZNR10R)

Power:95
Displacement:1794

Egine:1ZZ-FE

Fit Precision

Configured with standardized shaft lengths, precise spline counts and joint diameters, matching OEM geometry for accurate installation and balanced drivetrain performance.

Durable Construction

Manufactured from high-strength steel for enhanced torsional strength and wear resistance, combined with neoprene rubber boots that provide reliable sealing performance and resistance to corrosion and temperature variations.

Stable Transmission

The inner CV joint supports an operating angle of up to 22° that exceeds conventional T-shaped inner cage designs, enabling smooth torque transmission even at varying angles during steering and suspension movement.

Optimized NVH Performance

The short sliding distance of CV joint helps reduce internal movement and friction, effectively minimizing vibration and noise.

Complete Assembly Supply

Delivered as a full axle/shaft assembly, reducing installation time and eliminating the need for separate CV joint or boot assembly.

Quality Assurance & Certification

CCL Autoparts is committed to delivering OE-quality products to the global aftermarket.
Quality System: Certified to ISO 9001 and IATF 16949 international automotive standards.
Warranty Policy: 12-month or 30,000 km warranty, ensuring reliable product performance and after-sales support.

Packaging


Professional packaging is used to prevent damage during international transit.
Inner Packaging: Branded box or neutral packaging.
Outer Packaging: High-strength corrugated cartons combined with woven bags for enhanced protection.

Q1: How do I confirm compatibility with specific Corolla Verso models?

A: Verify OE number, vehicle model, engine type, and production year. Matching spline count, shaft length, and joint dimensions is essential to ensure proper fitment and performance.

Q2: What quality standards does this drive shaft meet?

A: Products are typically manufactured under ISO/IATF quality systems, with strict control on materials, heat treatment, and dynamic balancing to ensure durability and stable transmission.

Q3: What are the key performance advantages of this CV axle?

A: It provides constant velocity transmission, high efficiency (minimal power loss), reduced vibration, and reliable operation under varying angles and loads.

Q4: Is it supplied as a complete assembly or individual components?

A: Usually supplied as a complete axle assembly including inner and outer CV joints, boots, grease, and clamps-ready for installation, reducing labor time.
